IEEE 1394 Connectors

The IEEE 1394 connector, widely known as FireWire, is a high-speed serial bus standard that revolutionized data communication in computing, multimedia, and industrial environments. Designed to provide real-time, low-latency data transfer, these connectors became essential in applications where speed and reliability are critical.

One of the most popular types is the IEEE 1394a connector, which supports data transfer rates up to 400 Mbps. Later advancements introduced the IEEE 1394b connector, boosting performance to 800 Mbps and beyond. Even as newer technologies emerged, IEEE 1394 connectors remain highly valued for their stability and compatibility with legacy equipment.

Key Benefits of IEEE 1394 Connectors

High-Speed Data Transfer

  • IEEE 1394a connectors: Up to 400 Mbps transfer rate.
  • IEEE 1394b connectors: Speeds up to 800 Mbps, with backward compatibility.
  • Stable performance for multimedia, storage, and automation.

Hot-Swappable and Plug-and-Play

The FireWire connector allows devices to be connected or disconnected without powering down systems, making it ideal for mobile workstations, industrial automation, and fast-paced production environments.

Broad Device Compatibility

  • Digital cameras and camcorders.
  • External hard drives and storage solutions.
  • Professional audio/video equipment.
  • Robotics and industrial vision systems.

Secure and Reliable Design

IEEE 1394 connectors are engineered with shielding and pin configurations that protect against interference, ensuring signal integrity even in demanding environments.

Types of IEEE 1394 Connectors

IEEE 1394a Connector (FireWire 400)

The IEEE 1394a connector, also known as FireWire 400 connector, is one of the most widely used interfaces. It provides consistent performance and is available in several pin configurations:

  • 4-pin FireWire connector: Common in consumer electronics like camcorders and digital cameras.

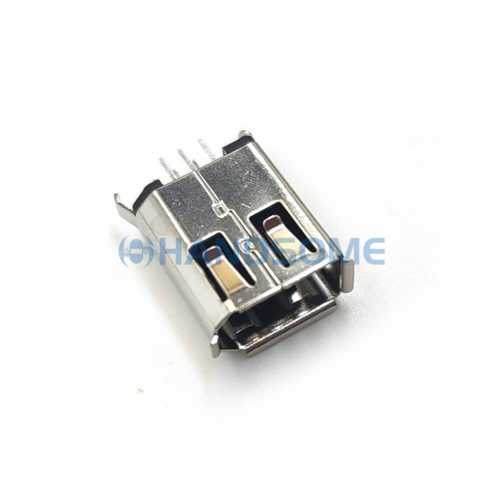

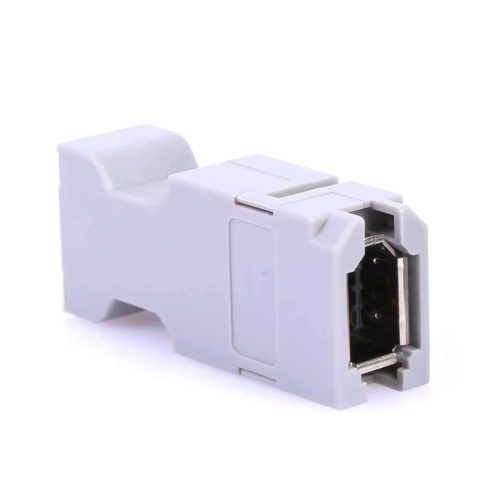

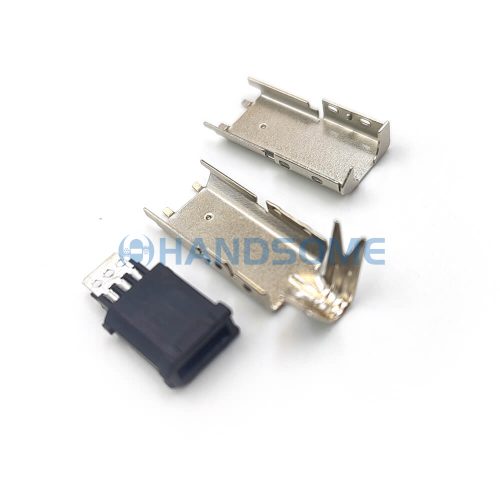

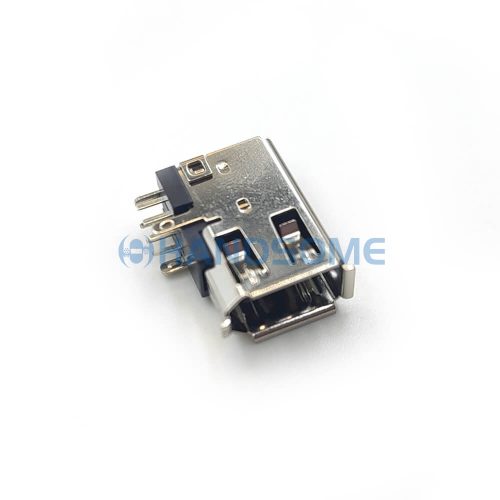

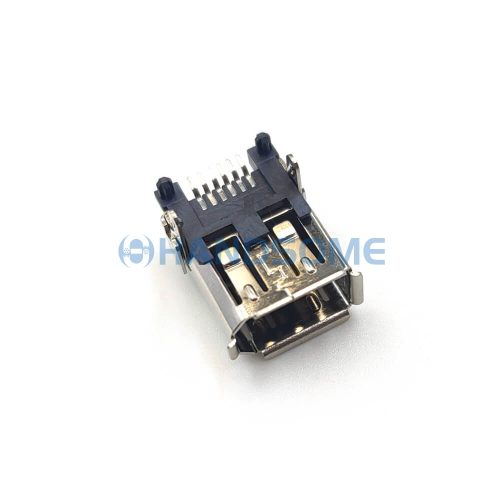

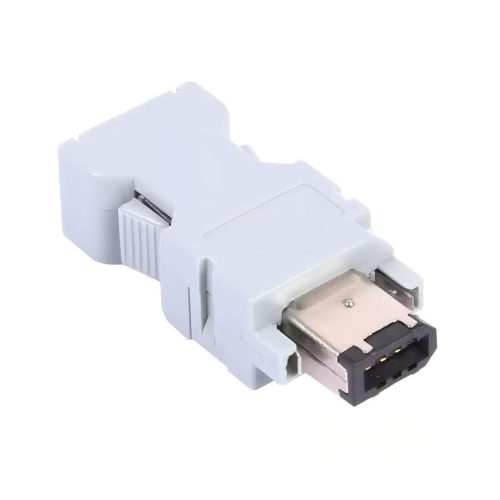

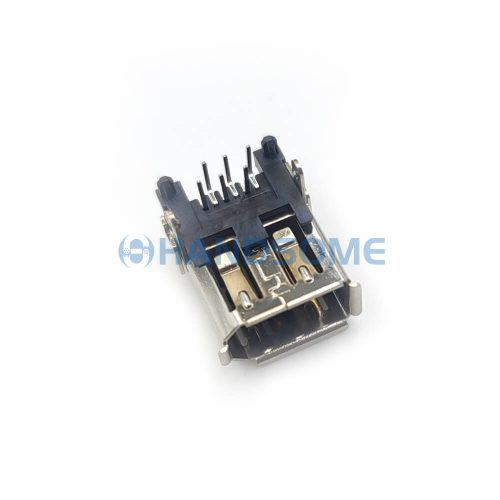

  • 6-pin FireWire connector: Includes power delivery, used for external hard drives and desktop peripherals.
  • 9-pin FireWire connector (bilingual): Supports compatibility with both IEEE 1394a and IEEE 1394b devices.

IEEE 1394b Connector (FireWire 800)

The IEEE 1394b connector (or FireWire 800 connector) improves on IEEE 1394a by doubling transfer speeds to 800 Mbps. Its advanced signaling allows longer cable lengths, making it suitable for professional-grade applications:

  • High-performance video editing systems.
  • Industrial automation with machine vision.
  • Audio recording studios requiring uninterrupted data flow.

Applications of IEEE 1394 Connectors

Consumer Electronics

  • Digital cameras and camcorders (especially older generations).
  • Multimedia devices requiring smooth video transfer.

Computing and Storage

  • External hard drives and SSDs.
  • DVD burners and CD writers.
  • Printers and scanners requiring high throughput.

Industrial and Automation Systems

  • Robotics and factory automation equipment.
  • Machine vision cameras for inspection systems.
  • Test and measurement devices requiring accurate real-time data.

Professional Audio/Video

  • Studio-grade audio recording equipment.
  • High-definition video editing hardware.
  • Mixers, amplifiers, and sound interfaces.

Compatibility and Legacy Support

Even though newer interfaces such as USB 3.0 and Thunderbolt are widely adopted today, the IEEE 1394 connector remains essential for users who depend on:

  • Legacy devices still in operation across industries.
  • Specialized equipment that requires FireWire for stable, real-time communication.
  • Industrial environments where reliability outweighs the need for cutting-edge speed.

Adapters and converters are also available to connect IEEE 1394a connectors and IEEE 1394b connectors with modern systems, extending their usability.

Choosing the Right IEEE 1394 Connector

When selecting an IEEE 1394 connector, consider the following factors:

  • Pin configuration (4-pin, 6-pin, or 9-pin).
  • Transfer speed requirements (IEEE 1394a vs. IEEE 1394b).
  • Application environment (consumer, industrial, or professional).
  • Cable length and shielding for interference protection.

By matching the connector type to your device’s requirements, you can ensure reliable performance across different applications.

Why Choose Our IEEE 1394 Connectors?

Our range of IEEE 1394 connectors is designed for durability, precision, and compatibility. Whether you need a compact IEEE 1394a connector for consumer electronics or a high-speed IEEE 1394b connector for industrial automation, our solutions provide:

  • High-quality materials for long-term reliability.
  • Strict compliance with IEEE 1394 standards.
  • Compatibility with a wide range of devices and cables.

Conclusion

The IEEE 1394 connector continues to be a trusted solution for high-speed, reliable, and low-latency data transmission. From the widely used IEEE 1394a connector to the more advanced IEEE 1394b connector, these connectors remain integral in both consumer and industrial applications.

For industries that require stable and real-time communication, IEEE 1394 connectors are not just legacy technology—they are proven, dependable, and built for long-term performance.
