IEEE 1394 Servo Connectors
High-Speed, High-Reliability Interfaces for Industrial Motion Control
Description
Our IEEE 1394 connectors (FireWire/i.Link) deliver 400–800 Mbps data transfer with integrated power delivery, designed specifically for industrial servo applications. Featuring robust PBT insulation, copper alloy contacts, and wide-temperature endurance (-40°C to +105°C), they ensure stable performance in high-vibration, high-noise environments. Support daisy-chaining for multi-axis systems and hot-swapping for zero-downtime maintenance.
Specification
| Parameter | 6-Pin PCB Model |
|---|---|
| Rated Current | 1.5A |
| Rated Voltage | 40V AC/DC RMS |
| Withstand Voltage | 500V AC (60 sec) |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥100 MΩ |
| Operating Temp. | -40°C ~ +105°C |
| Mounting Type | Wire Solder |
| Contact Material | Copper Alloy (Anti-Corrosion) |
| Insulation Material | LCP |
| Max. Processing Temp. | 260°C ±5°C (5 sec) |
Other Model
HSCN1401-06M-01 IEEE1394 SM-6P Male Plug
HSCN1401-06F-02 IEEE1394 SM-6P Male Plug, Servo Encoder Connector
HSCN1401-06F-03 IEEE1394 SM-6E Female Plug, Servo Encoder Connector

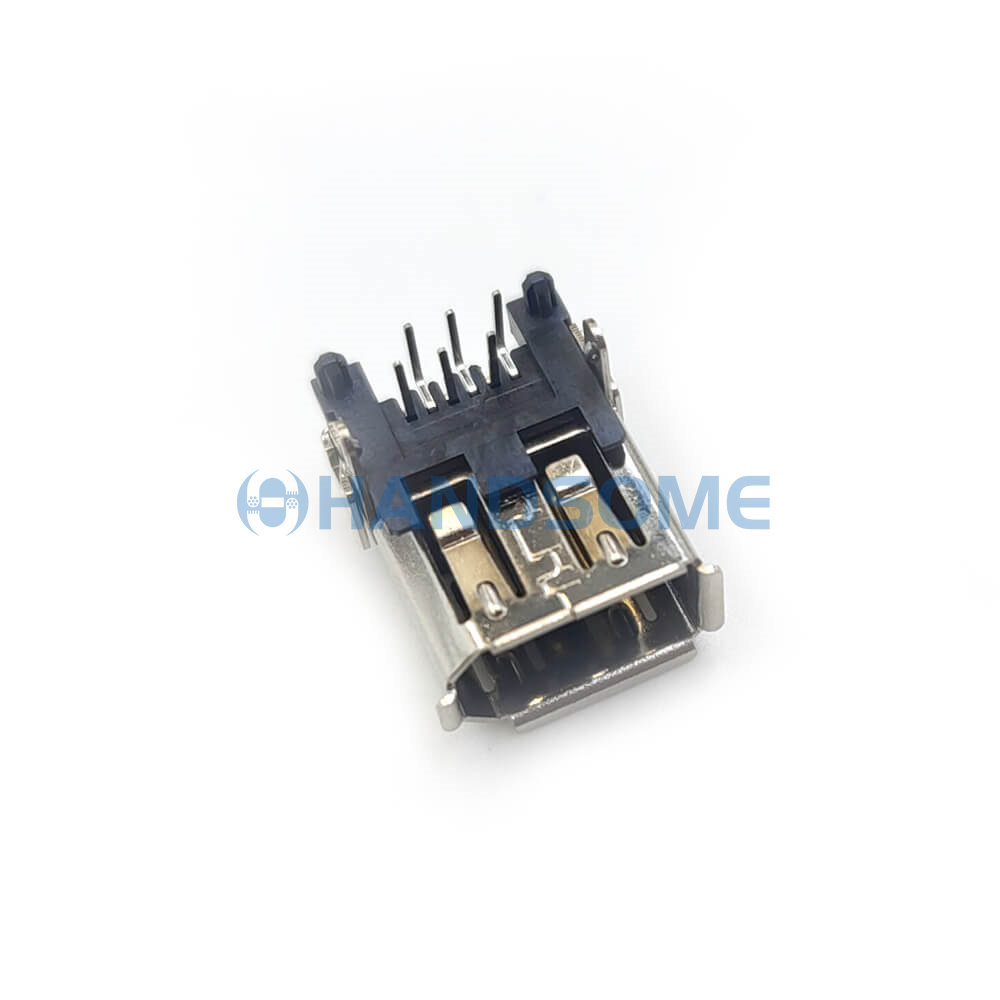

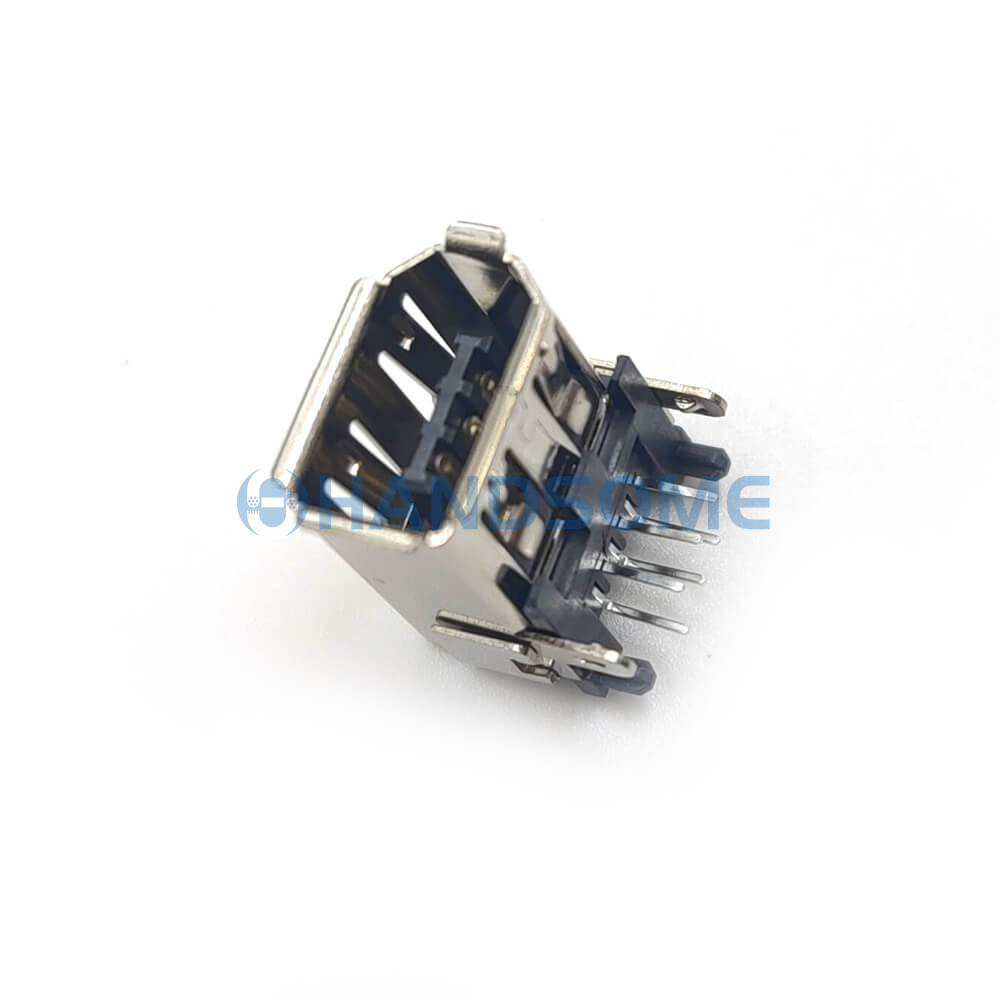

HSCN1401-06F-04 IEEE1394 6P Female Socket, Horizontal Pins Servo Encoder Connector
HSCN1401-06F-05 IEEE1394 6P Female Socket, SMD Pins Servo Encoder Connector
HSCN1401-06F-06 IEEE1394 6P Female Socket, 90-degree Side Pins Servo Encoder Connector
HSCN1401-06F-07 IEEE1394 6P Female Socket, 180 Degree Vertical Servo Encoder Connector
HSCN1401-10M-08 IEEE1394 SM-10P Male Plug, MR-J3CN2 Servo Encoder Connector
HSCN1401-10F-09 IEEE1394B 9P Female Socket
HSCN1401-10F-10 IEEE1394 10P Female Socket, Side Pins Servo Encoder Connector
HSCN1401-10F-11 IEEE1394 10P Female Socket, Dip Straight Servo Encoder Connector
HSCN1401-10F-12 IEEE1394 10P Female Socket, SMD Pins Servo Encoder Connector
Key Features
✅ Industrial-Grade Reliability
- 500V Hi-Pot Isolation & 1000MΩ Insulation
- Vibration Resilience
- -40°C Cold Start
✅ Servo-Specific Optimization
- Dual Power/Data Pins
- Low-Latency Sync
✅ Plug-and-Play Efficiency
- Hot-swappable in <30 sec
- Tool-free cabling
Applications
⚙️ Mission-Critical Servo Connections
- Motor Feedback Interfaces – Encoder/resolver signals in servo drives (e.g., Yaskawa, Siemens, Delta).
- Multi-Axis Robotics – Joint controller comms in collaborative robots.
- High-Speed Motion Control – Linear actuator networks in semiconductor manufacturing.
- Industrial Camera Links – Vision-guided robotic arms.
FAQ
Q: Which model supports 1394b 800Mbps?
A: Use 10-pin PCB models . 6-pin variants are for 1394a.
Q: Can it replace legacy Sercos interfaces?
A: Yes – 1394 offers lower latency and higher bandwidth (up to 3.2Gbps with 1394b+).
Q: Customization options?
A: Configure:
- Right-angle PCB mounts (90°) for compact control cabinets.
- Gold-plated contacts for humid environments.
- Shielded cables (foil + braid) for EMI-heavy zones.
Q: Lead time for IEEE 1394 FireWire Servo Connectors?
A: 3~5 days for small orders, and for bulk orders, it takes 10~20 days.
Why Choose Handsome?
◼ 200+ Industrial Connector SKUs – Full solution for servo/robotics systems.
◼ Focus on motion control field –continue to deepen the application of industrial robots, CNC machine tools, servo drives and other scenarios
◼ Special support for sample orders and small orders—No minimum order quantity required. In-stock products ship within 72 hours. We also handle mixed orders: We accept combined orders of multiple models (e.g., a 1394 connector + industrial terminal combination).
◼Full life cycle rapid response—from pre-sales consultation to order production, after-sales support, and technical support full-link service
