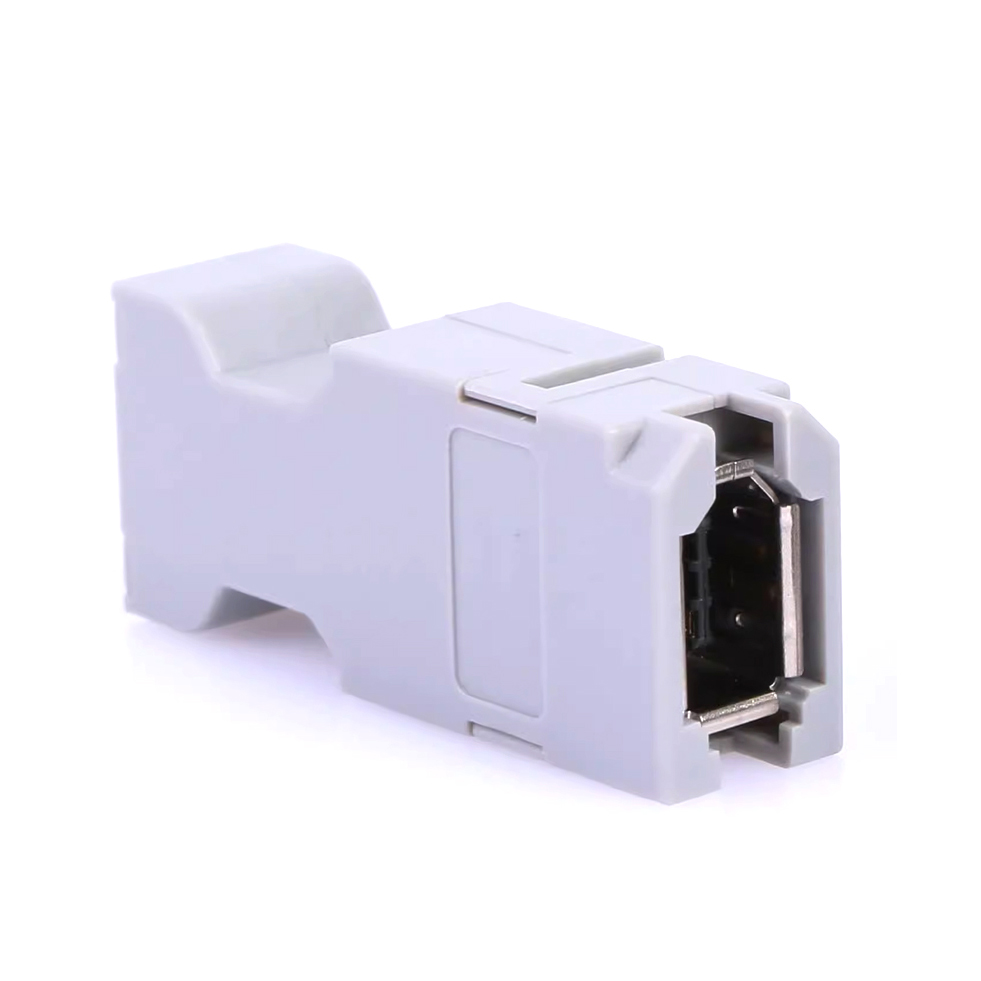

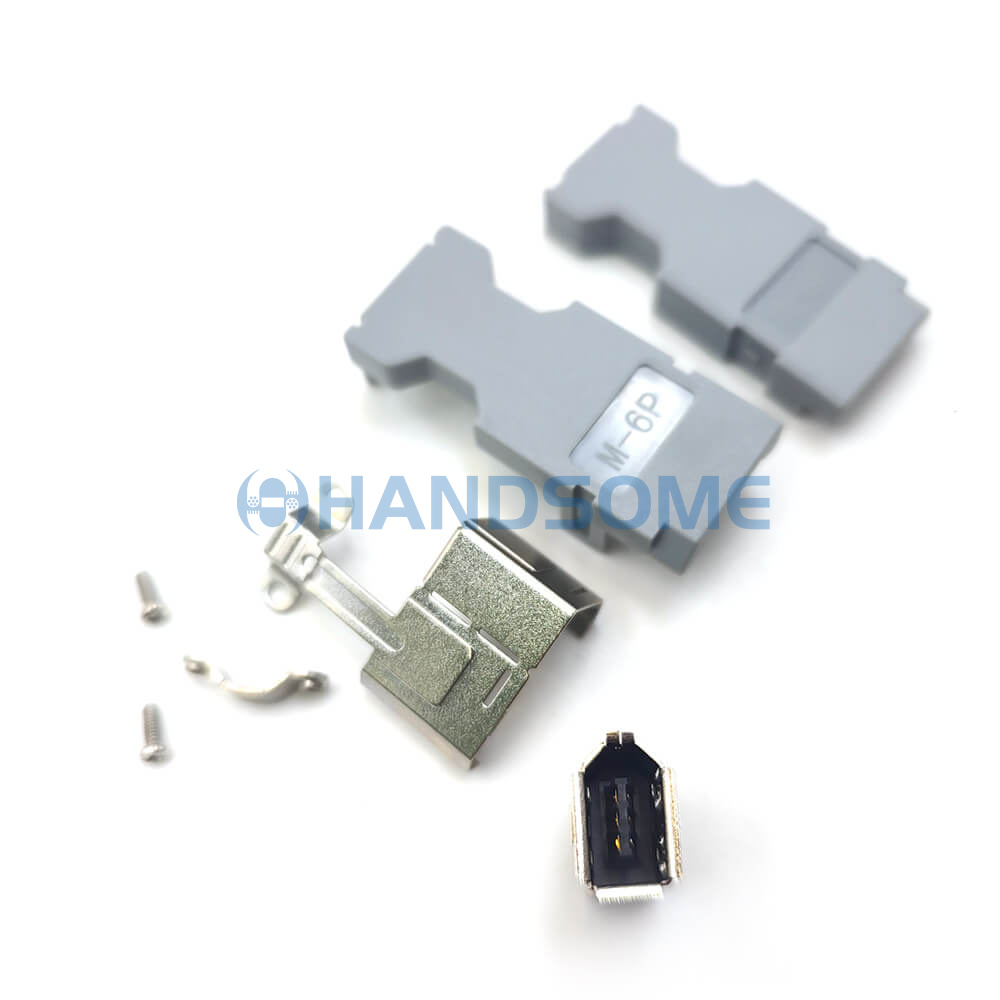

IEEE1394 SM-6E Female Plug, Servo Encoder Connector

Categories: , Tag:
Global form

More Quantity, Get More Discount

  • We can meet Small Batches
  • Secure Payments, Paypal, T/T, Western Union, Credit Card
  • Contact Right Now, [email protected]

​IEEE 1394 FireWire Servo Connectors​

​High-Speed, High-Reliability Interfaces for Industrial Motion Control​



Description​

Our IEEE 1394 connectors (​​FireWire​​/​​i.Link​​) deliver ​​400–800 Mbps data transfer​​ with integrated power delivery, designed specifically for industrial servo applications. Featuring robust PBT insulation, copper alloy contacts, and wide-temperature endurance (-40°C to +105°C), they ensure stable performance in high-vibration, high-noise environments. Support daisy-chaining for multi-axis systems and hot-swapping for zero-downtime maintenance.

Specification​

​Parameter​ ​6-Pin Wire Model​
​Rated Current​ 1.0A
​Rated Voltage​ 200V AC/DC RMS
​Withstand Voltage​ 500V AC (60 sec)
​Contact Resistance​ ≤20 mΩ
​Insulation Resistance​ ≥1000 MΩ
​Operating Temp.​ -40°C ~ +105°C
​Mounting Type​ Wire Solder
​Contact Material​ Copper Alloy (Anti-Corrosion)
​Insulation Material​ PBT (UL94 V-0 Flame-Retardant) Or LCP
​Max. Processing Temp.​ 245°C ±5°C (5 sec)

Other Model

HSCN1401-06M-01   IEEE1394 SM-6P Male Plug
HSCN1401-06F-02   IEEE1394 SM-6P Male Plug, Servo Encoder Connector
HSCN1401-06F-03   IEEE1394 SM-6E Female Plug, Servo Encoder Connector
HSCN1401-06F-04   IEEE1394 6P Female Socket, Horizontal Pins Servo Encoder Connector
HSCN1401-06F-05   IEEE1394 6P Female Socket, SMD Pins Servo Encoder Connector
HSCN1401-06F-06   IEEE1394 6P Female Socket, 90-degree Side Pins Servo Encoder Connector
HSCN1401-06F-07   IEEE1394 6P Female Socket, 180 Degree Vertical Servo Encoder Connector
HSCN1401-10M-08   IEEE1394 SM-10P Male Plug, MR-J3CN2 Servo Encoder Connector
HSCN1401-10F-09   IEEE1394B 9P Female Socket
HSCN1401-10F-10   IEEE1394 10P Female Socket, Side Pins Servo Encoder Connector
HSCN1401-10F-11   IEEE1394 10P Female Socket, Dip Straight Servo Encoder Connector
HSCN1401-10F-12   IEEE1394 10P Female Socket, SMD Pins Servo Encoder Connector

Key Features​

✅ ​​Industrial-Grade Reliability​

  • ​​500V Hi-Pot Isolation​​ & ​​1000MΩ Insulation
  • ​​Vibration Resilience​​
  • ​​-40°C Cold Start​​

✅ ​​Servo-Specific Optimization​

  • ​​Dual Power/Data Pins​​
  • ​​Low-Latency Sync​​

✅ ​​Plug-and-Play Efficiency​

  • Hot-swappable in <30 sec
  • Tool-free cabling

​Applications​

⚙️ ​​Mission-Critical Servo Connections​

  • ​Motor Feedback Interfaces​​ – Encoder/resolver signals in servo drives (e.g., Yaskawa, Siemens, Delta).
  • ​Multi-Axis Robotics​​ – Joint controller comms in collaborative robots.
  • ​High-Speed Motion Control​​ – Linear actuator networks in semiconductor manufacturing.
  • ​Industrial Camera Links​​ – Vision-guided robotic arms.

​FAQ​

​Q: Which model supports 1394b 800Mbps?​

A: Use ​​10-pin PCB models​​ . 6-pin variants are for 1394a.

​Q: Can it replace legacy Sercos interfaces?​

A: Yes – 1394 offers lower latency and higher bandwidth (up to 3.2Gbps with 1394b+).

​Q: Customization options?​

A: Configure:

  • Right-angle PCB mounts (90°) for compact control cabinets.
  • Gold-plated contacts for humid environments.
  • Shielded cables (foil + braid) for EMI-heavy zones.

​Q: Lead time for ​​IEEE 1394 FireWire Servo Connectors?​

A: 3~5 days for small orders, and for bulk orders, it takes 10~20 days.



Why Choose Handsome?​

◼ ​​200+ Industrial Connector SKUs​​ – Full solution for servo/robotics systems.

◼ ​​Focus on motion control field​​ –continue to deepen the application of industrial robots, CNC machine tools, servo drives and other scenarios

◼ ​Special support for sample orders and small orders—No minimum order quantity required. In-stock products ship within 72 hours. We also handle mixed orders: We accept combined orders of multiple models (e.g., a 1394 connector + industrial terminal combination).

​◼Full life cycle rapid response—from pre-sales consultation to order production, after-sales support, and technical support full-link service
