FANUC A05B-2255-D001 Teach Pendant Stop Switch Cable for R-30iB Series

Brief Summary

The FANUC A05B-2255-D001 is an emergency stop (E-Stop) switch assembly for FANUC teach pendants. It includes a CNEMG1 connector and pre-wired harness, compatible with R-30iB and R-30iB Plus controller series. This replacement part ensures safety compliance in industrial robot operations.

Key Technical Points

• Emergency stop switch for FANUC teach pendants
• Includes CNEMG1 connector
• Pre-wired harness for direct integration
• Compatible with FANUC R-30iB and R-30iB Plus controllers
• Replacement part for A05B-2255-CXXX series teach pendants

Product Description

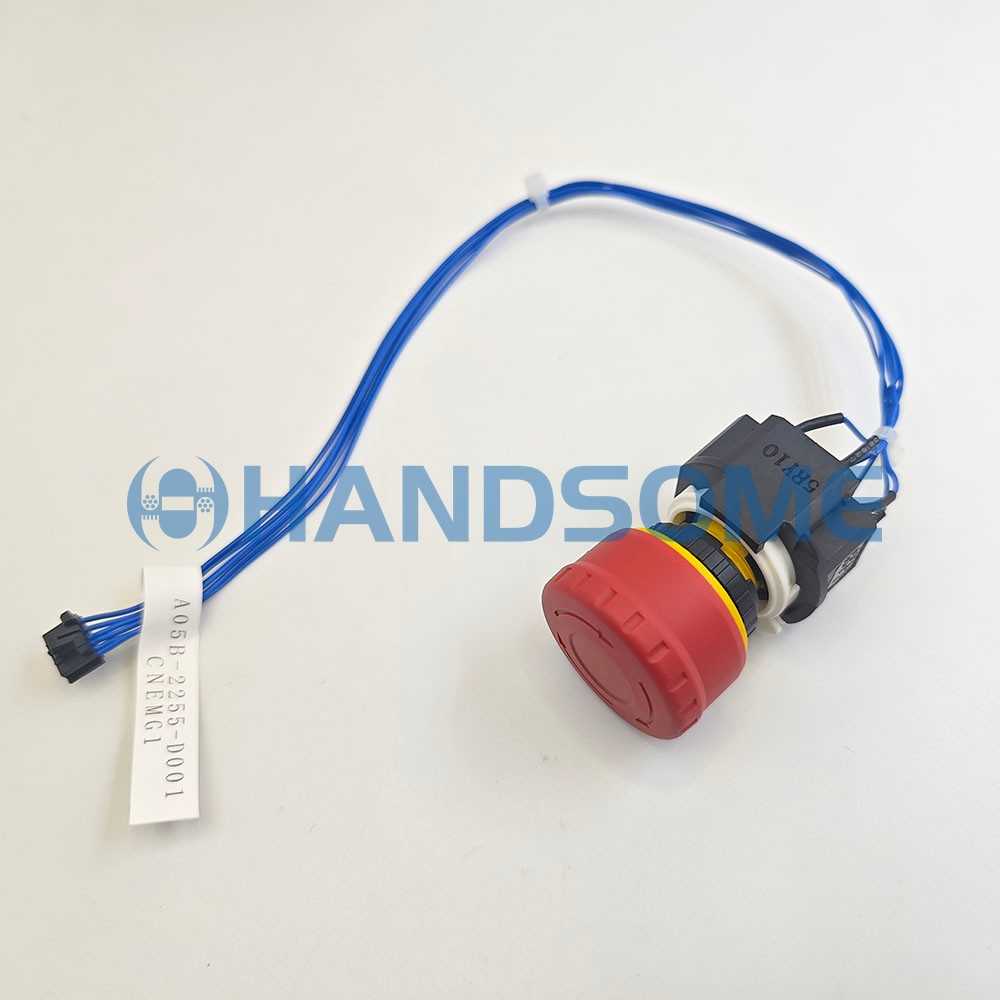

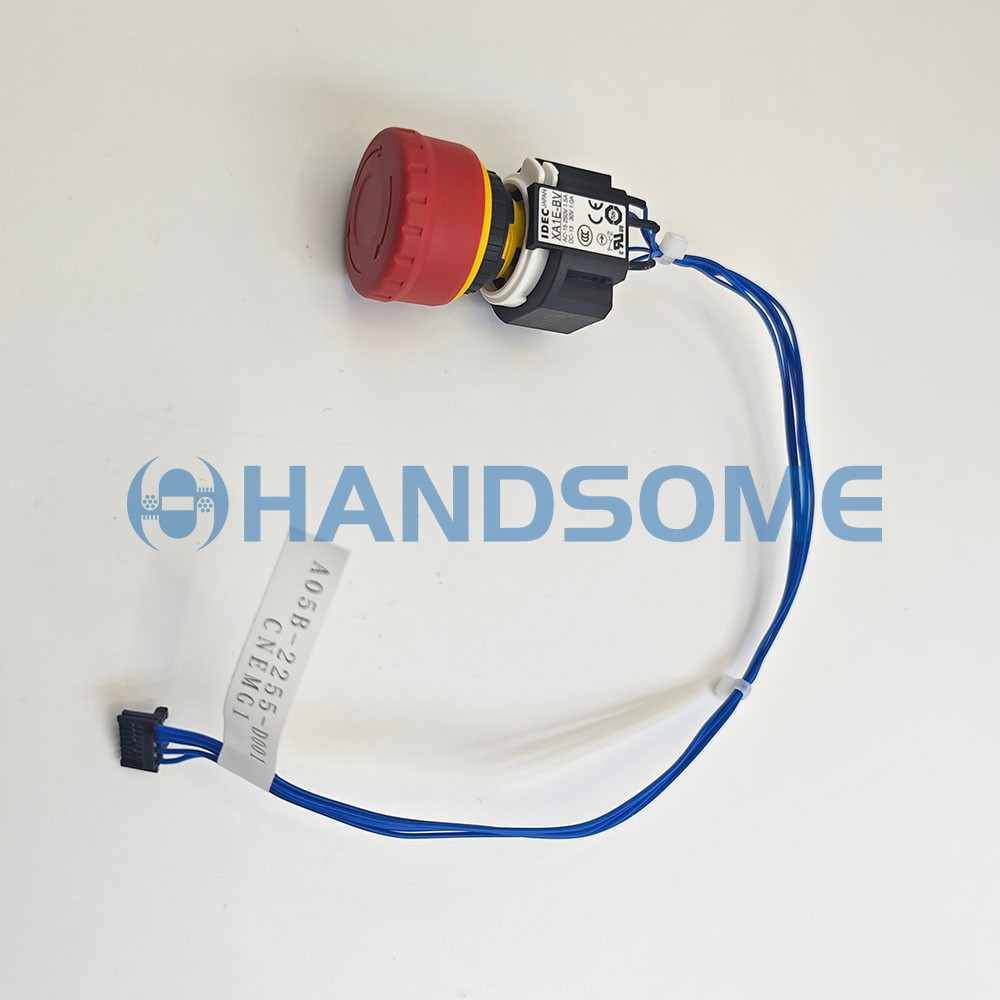

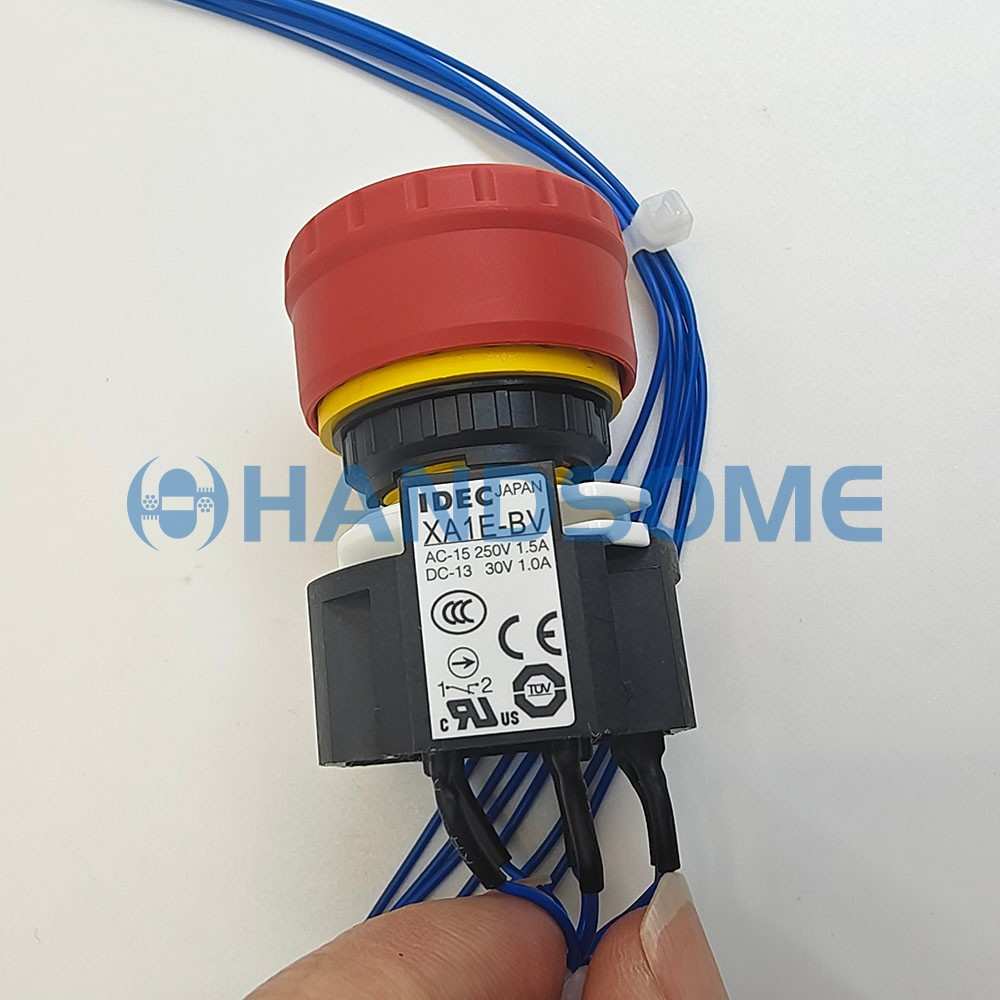

The FANUC A05B-2255-D001 is a genuine replacement emergency stop (E-Stop) switch assembly designed for FANUC teach pendants used with R-30iB and R-30iB Plus robot controllers. This part features a CNEMG1 connector and a pre-wired harness, allowing for quick and secure installation into existing teach pendant units. The switch provides a reliable safety shutdown mechanism, essential for protecting personnel and equipment during robot programming and maintenance.

This E-Stop switch is specifically designed to replace the emergency stop button on A05B-2255-CXXX series teach pendants. It ensures compliance with industrial safety standards and maintains the original functionality of the pendant. The pre-wired design minimizes installation time and reduces the risk of wiring errors.

As a critical safety component, the A05B-2255-D001 is manufactured to FANUC’s exacting specifications, ensuring durability and long service life in demanding industrial environments. It is suitable for use in various automation applications including material handling, welding, assembly, and machine tending.

Key Features

• Emergency stop switch with CNEMG1 connector
• Pre-wired harness for easy installation
• Compatible with FANUC R-30iB and R-30iB Plus controllers
• Replacement for A05B-2255-CXXX teach pendants
• Ensures safety compliance in robot operations
• Durable construction for industrial environments

Compatible Controllers / Systems

The A05B-2255-D001 is compatible with FANUC R-30iB and R-30iB Plus robot controllers. It is designed for use with A05B-2255-CXXX series teach pendants. This switch is suitable for FANUC industrial robots used in applications such as material handling, welding, assembly, painting, and machine tending.

Note: Verify compatibility with your specific FANUC robot model and controller version. This part is intended for R-30iB series controllers; for other series, consult FANUC documentation.
